Fiat Stilo Car Warning Lights

Fiat Stilo car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Fiat Stilo dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Fiat trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your Stilo we would recommend the iCarsoft i950 Fiat OBD Code Reader.

If you need a new sensor to fix your Fiat Stilo such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

Fiat Stilo Check Engine warning light - the engine warning light (also known as check engine light) is very important, and if illuminated it should be dealt with as soon as possibe. The most likely cause of the engine light on your dashboard is a sensor of some kind. It could be a camshaft, crankshaft, O2, MAP, or MAF sensor. It could also be the ignition coils which as causing a misfire in the engine. To diagnose the fault yourself you should use the iCarsoft i950 Fiat OBD Code Reader which will allow you to read & reset the Fiat trouble codes, and also clear the engine warning light from the dashboard.

Fiat  Stilo Airbag warning light - the airbag warning symbol is an important safety feature in your Stilo, and this warning light should be taken seriously and acted upon straight away if illuminated. We recommend you use the iCarsoft i950 Fiat OBD Code Reader to pinpoint the electrical fault in the airbag system. You can read & reset the airbag trouble codes in the Fiat, then reset the airbag warning light aswell with this kit.

Fiat Stilo ABS warning light  - the ABS warning symbol will illuminate on the dashboard if your braking system is not working as it should. The main cause of an ABS warning light is a faulty ABS sensor, which is generally the cheapest to replace but there are 4 of them in your car (one on each wheel). There is also the possibility that there could be a fault with the ABS module, or the ABS pump, these are quite expensive to replace or repair. To find the fault you can use the iCarsoft i950 Fiat OBD Code Reader kit which will pinpoint the problem, and allow you to erase the ABS trouble code from your Fiat, and then turn off the ABS warning light from the dashboard.

Fiat Stilo Brake & ABS warning light - see above, generally if your ABS light is illuminated, your brake ! warning symbol will also illuminate.

Fiat Stilo ESP warning light - the ESP light will generally flash if you are driving over unever surfaces such as snow, ice or gravel. If this light is illuminated under normal driving conditions the system has a fault and can be diagnosed by plugging the iCarsoft i950 Fiat OBD Code Reader in the Stilo diagnostic port.

Fiat Stilo Pre Heating Glow Plugs warning light - the pre heating warning light will only illuminate on the dashboard of diesel cars. When you put your key in the ignition and turn once you will see this light. You should only start the engine when this symbol has gone out on its own. On cold starts it may take a little longer for this to turn off.

Fiat Stilo Water in Oil warning light - this warning symbol will only illuminate in diesel models and if illuminated during normal driving conditions you have have it checked out by your local Fiat dealer workshop or garage.

Fiat Stilo rear side airbags warning light - this light will illuminate when this is switched off.

Fiat Stilo Passenger Airbag warning light - the passenger airbag with a 2 next to it will illuminate when the front passenger airbag has been deactivated so that a child or baby seat can be installed onto this seat.

Fiat Stilo Engine Oil Pressure warning light - if the low engine oil pressure illuminates in RED on your dashboard you should stop the car immediately and have it looked at by a Fiat dealer workshop or garage.

Fiat Stilo Electronic Power Steering warning light - the electronic power steering warning light will turn on when the system has failed. You can diagnose this problem yourself by using the iCarsoft i950 Fiat OBD Code Reader kit.

Fiat Stilo DOT Coolant Temperature warning light - the dot symbol will turn on if the ecu detects that the engine coolant temperature is tool high. If this illuminates the car should be stopped immedeately and checked over by a professional. You can also check for leaks yourself as the expansion tank is prone to cracking. Do not unscrew the expansion tank cap until the engine has completely cooled down.

Fiat Stilo Brakepads warning light - the brakepads warning symbol will illuminate when the brakepads in your Stilo are close to being worn out and should be replaced as soon as possible to prevent damage to the brake discs.

Fiat Stilo Battery warning light - the battery warning symbol means that the battery in your Fiat Stilo is not being charged and should be checked out by a Fiat dealer workshop or garage.

Fiat Stilo brake warning light - if this ! brake warning symbol illuminates on its own it will mean one of two things. The first thing is that the handbrake is in the ON position. If you are confident that that handbrake is fully off, but the light is still illuminated it means you need to check your brake fluid levels and top up accordingly.

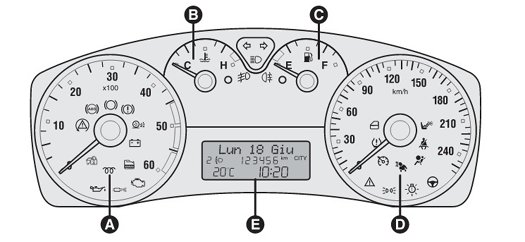

Fiat Stilo Dashboard Warning Lights & Symbols Speedo Diagnostic World
A. Fiat Stilo Rev counter
B. Fiat Stilo Engine coolant temperature gauge and excessive temperature warning light
C. Fiat Stilo Fuel level gauge with reserve warning light
D. Fiat Stilo Speedometer (speed indicator)
E. Fiat Stilo Multifunction display
