Lexus IS Mk2 Car Warning Lights

Lexus IS car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Lexus IS dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Lexus trouble codes and clear the warning light for good.

Lexus IS Mk2 engine warning light - the engine symbol lamp can illuminate on your Lexus for a wide range of reasons, some of the reasons people do not think about generally are that the gas tank is completely empty, the fuel cap is not secure, or there could be a more obvious fault such as a faulty sensor like the camshaft sensor, crankshaft sensor, mass airflow meter, ignition coil etc. You can diagnose the engine warning light by using the iCarsoft TYT V1.0 Lexus OBD Code Reader which will give you fault codes and allow you to clear them, which will also clear the warning light on the dash (providing the fault has been fixed)
Lexus IS Mk2 CHECK ENGINE dashboard warning light symbol fault Diagnostic World Reset

Lexus IS Mk2 check engine warning light - depending on your location. The meaning of this engine warning lamp is the same as above.

Lexus IS Mk2 airbag warning light - the airbag symbol lamp on your Lexus IS will only illuminate if there is an open circuit or fault within the airbag system. Generally it could be a loose connection or sensor that needs to be looked at, but it could be more serious. You can locate the airbag fault by using the iCarsoft TYT V1.0 Lexus OBD Code Reader kit which will locate the fault and allow you to clear the error codes and remove the dash light, providing the fault has been fixed.

Lexus IS ABS warning light - the ABS symbol lamp will illuminate on the dash of your IS if the module has found a fault. The fault will generally be because of a faulty ABS sensor, however sometimes the ABS module can fail and need replacing. The exact location of the fault can be found by diagnosing the system with the iCarsoft TYT V1.0 Lexus OBD Code Reader it will clear the problem code once the fault has been fixed and allow you to clear the airbag warning lights for the ABS.

Lexus IS slip indicator traction control warning light - the ESP or traction symbol lamp will flash when driving over surfaces such as snow or ice, and will try to obtain the best possible traction for your Lexus, if there is a fault within this system the warning light will remain permanently on and can be diagnosed by using the iCarsoft TYT V1.0 Lexus OBD Code Reader. It will allow you to clear & reset error codes from this system and remove the dash warning light for the traction system.

Lexus IS Mk2 BRAKE warning light - the BRAKE symbol lamp might illuminate with the ABS light because of a faulty ABS sensor, if this lights up alone, you might need to check your brake fluid levels and top up accordingly. You can use the iCarsoft TYT V1.0 Lexus OBD Code Reader to diagnose brake system problems in your Lexus IS.
Lexus IS Mk2 BATTERY dashboard warning light symbol fault Diagnostic World Reset

Lexus IS Mk2 battery warning light - the battery symbol lamp actually refers to the charging system and means there is a fault within this system as the battery is not being charged. You might need a new battery, or a new alternator.

Lexus IS Mk2 passenger airbag warning lights - simply indicates if the passenger front airbag is activated or deactivated.

Lexus IS Mk2 VSC OFF - vehicle stability control warning light - if this symbol is illuminated it indicates that this system is turned off. This system helps the driver to control skidding when swerving suddenly or turning on slippery road surfaces.
Lexus IS Mk2 RED WARNING TRIANGLE ! dashboard warning light symbol fault Diagnostic World Reset

Lexus IS Mk2

Lexus IS Mk2 TPMS tyre pressure warning system - this warning light indicates that there is not enough pressure in one or more of the tyres so please check your levels and top up accordingly.

Lexus IS Mk2 cruise warning light - this symbol indicates that the cruise control function is activated. Press the cruise button again to turn this function off.

Lexus IS Mk2 parking assist warning light - this symbol will illuminate when there is a problem with the park assist system. You can use the iCarsoft TYT V1.0 Lexus OBD Code Reader to diagnose faults in this system and find out exactly which sensor or part of the system is at fault.

Lexus IS Mk2 pre collision system warning light - if this symbol is illuminated in your Lexus it indicates there is a malfunction in this system and it should be checked out by your local Lexus workshop or garage.

Lexus IS Mk2 oil service inspection reminder dash warning message - this warning light can show up differently on your Lexus, but essentially the message is the same - your Lexus is due to be serviced. Once the car is serviced the warning reminder needs to be reset. If you have carried out the service you can reset the message by using the iCarsoft TYT V1.0 Lexus OBD Code Reader diagnostic kit which will also allow you to read & reset trouble codes & warning lights for the main systems (engine, ABS, airbags & transmission)

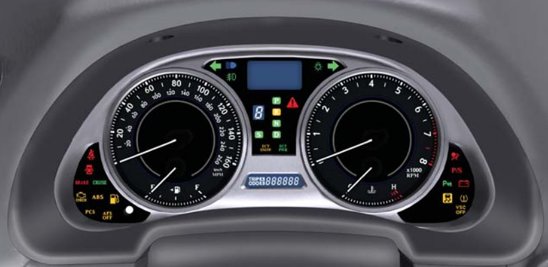

Lexus Is Dashboard Warning Lights & Symbols Cluster Diagnostic World
1. Lexus IS XE20  tachometer
2. Lexus IS XE20 headlight high beam indicator light
3. Lexus IS XE20 low engine oil warning light
4. Lexus IS XE20 automatic headlight leveling system warning light
5. Lexus IS XE20 turn signal indicator lights
6. Lexus IS XE20 cruise control indicator light
7. Lexus IS XE20 momentary fuel consumption meter
8. Lexus IS XE20 voltmeter
9. Lexus IS XE20 engine coolant temperature gauge
10. Lexus IS XE20 antilock brake system warning light
11. Lexus IS XE20 malfunction indicator lamp
12. Lexus IS XE20 fuel gauge
13. Lexus IS XE20 low fuel level warning light
14. Lexus IS XE20 odometer and trip meter
15. Lexus IS XE20 power mode indicator light
16. Lexus IS XE20 snow mode indicator light
17. Lexus IS XE20 ODO/TRIP knob
18. Lexus IS XE20 automatic transmission indicator lights
19. Lexus IS XE20 m mode indicator
20. Lexus IS XE20 gear position indicator for manual control
21. Lexus IS XE20 rear light failure warning light
22. Lexus IS XE20 discharge warning light
23. Lexus IS XE20 security indicator light
24. Lexus IS XE20 traction control warning light
25. Lexus IS XE20 low oil pressure warning light
26. Lexus IS XE20 slip indicator light
27. Lexus IS XE20 brake system warning light
28. Lexus IS XE20 srs airbag warning light
29. Lexus IS XE20 open door warning light
30. Lexus IS XE20 drivers seatbelt reminder light

If you need to find or clear a trouble code or dashboard warning light you will need to plug a diagnostic tool into the vehicle diagnostic port. Our partner store UK Pro diagnostics have produced guides for every diagnostic port so you should find the Lexus diagnostic port location with ease.
