SEAT Leon Mk2 Car Warning Lights

Seat Leon car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Seat Leon dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Seat trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your SEAT Leon Mk2 we would advise you to go for the iCarsoft i908 Seat OBD Code Reader. Its an extremely popular choice amongst SEAT owners worldwide because it covers such a wide range of modules within the vehicle and has received excellent feedback from buyers.

If you need a new sensors to fix your SEAT such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

Seat Leon Mk2 1P engine warning light - if the engine warning light appears on your Seat Leon Mk2 1P it menas there is a serious fault within the engine module. You should not drive any further to prevent further damage and have the engine fault diagnosed as soon as possible. You can diagnose & repair the fault yourself by using the iCarsoft i908 Seat OBD Code Reader. The kit will read the trouble codes and let you know where the problem is (generally a faulty sensor such as camshaft, crankshaft or MAF).

Seat Leon Mk2 1P ABS warning light (Antilock Braking System) - the ABS light on your Seat Leon will normally illuminate when the engine starts but then go out. If your ABS light stays on or comes on when you are driving it indicates that there's a fault within the ABS system. Generally this will indicate a faulty ABS sensor or wheel speed sensor, and your Seat will have four of these. To be sure that it is the ABS sensor that is at fault, and to find out which on you need to use a diagnostic kit that has capability of communicating with the ABS system such as our iCarsoft i908 Seat OBD Code Reader kit. Be careful, not all diagnostic code reader will read info from the ABS module, but our kit does. If you need a replacement ABS sensor you can pick them up from Dominator Auto Diagnostics.

Seat Leon Mk2 1P airbag warning light - the airbag light when illuminated on your Seat indicates that there is a fault present within the air bag module, and because of this the system will not be working as intended. You should get this diagnosed as soon as possible. To diagnose a fault in your airbag system you should use the iCarsoft i908 Seat OBD Code Reader kit, it will read & clear airbag diagnostic codes aswell as clear the airbag light from the dashboard. The airbag light showing on your dashboard is a UK MOT failure.

Seat Leon Mk2 1P EPC warning light - EPC stands for Electronic Power Control and looks after the electrical components of the engine. If the light illuminates during normal operating conditions it means that there is a fault within the system. You should use the iCarsoft i908 Seat OBD Code Reader to diagnose the problem. Once the problem is fixed the dash light can be removed from the dashboard.

Seat Leon Mk2 1P washer fluid warning light - this simply indicates that the washer fluid in your Seat is low and you should top up as soon as possible.

Seat Leon Mk2 1P boot open warning light - indicates that your boot or trunk is not closed properly, stop the vehicle and check that the boot is fully closed correctly.

Seat Leon Mk2 1P engine oil pressure warning light - if this light starts to flash with 3 audible beeps it means that the oil level is low and you should check your levels and top up as soon as possible. If the oil level is OK and you are still getting the warning lights there is a more serious problem.

Seat Leon Mk2 1P fuel warning light - indicates that your Seat Leon is low on fuel and you should pull over at the next opportunity to fill up. It is not healthy for your engine to run on fumes.

Seat Leon Mk2 1P coolant level or temperature warning light - the coolant warning light will illuminate when the engine coolant is either too hot, or the level is too low. If this lights up you should stop driving immediately because you could further damage your engine. Ensure the coolant is topped up, when topping up you should check for any leacks dripping from the expansion tank or hoses. Over time leaks can occur and need to be fixed straight away otherwise your engine will break.

Seat Leon Mk2 1P battery warning light - indicates that the battery in your Seat is not being charged. It could be a problem with the alternator or the battery. You can use the iCarsoft i908 Seat OBD Code Reader kit to diagnose the problem and replace the required part.

Seat Leon Mk2 1P brake pad warning light - if this lights up and stays illuminated, it indicates that your brake pads are close to being worn out and should be changed at the earliest opportunity.

Seat Leon Mk2 1P glow plug warning light - also known as pre heating warning light. Will light up when ignition is turned, you should wait until the light goes out before starting your engine. You will find that the light takes longer to go out during colder temperatures. This warning light will only show on diesel vehicles.

Seat Leon Mk2 1P main beam warning light

Seat Leon Mk2 1P indicator warning lights - will flash when turning left or right.

Seat Leon Mk2 1P seatbelt warning light - this warning symbol will illuminate unitl all passengers have fastened their seatbelts. Safety first, please buckle up.

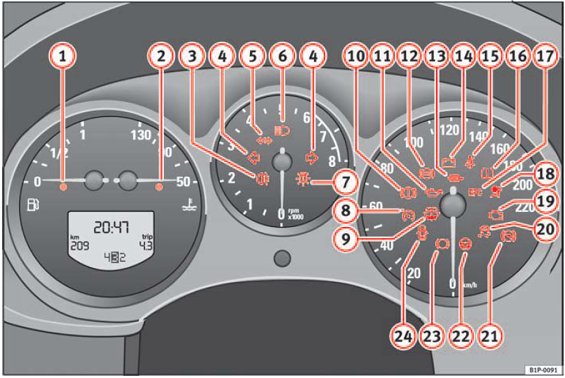

Seat Leon Mk2 1p dashboard lights
1 Seat Leon Mk2 1P fuel evel warning light
2 Seat Leon Mk2 1P coolant level or temperature warning light
3 Seat Leon Mk2 1P rear fog light warning light
4 Seat Leon Mk2 1P turn signals warning light
5 Seat Leon Mk2 1P trailer turn signal in operation
6 Seat Leon Mk2 1P  main beam switched on
7 Seat Leon Mk2 1P bulb defectivw
8 Seat Leon Mk2 1P cruise control system switched on
9 Seat Leon Mk2 1P  washer fluid level
10 Seat Leon Mk2 1P parking brake applied or low brake fluid warning light
11 Seat Leon Mk2 1P engine oil pressure warning light
12 Seat Leon Mk2 1P abs warning light
13 Seat Leon Mk2 1P pollen accumilation in the diesel engine particulate filter
14 Seat Leon Mk2 1P alternator fault
15 Seat Leon Mk2 1P fasten seatbelt warning light
16 Seat Leon Mk2 1P tyre pressure warning light
17 Seat Leon Mk2 1P EPC engine fault warning light
18 Seat Leon Mk2 1P airbag warning light
19 Seat Leon Mk2 1P engine emission warning light
20 Seat Leon Mk2 1P esp traction warning light
21 Seat Leon Mk2 1P gear selector locked warning light in automatic cars
22 Seat Leon Mk2 1P electromechanical steering warning light
23 Seat Leon Mk2 1P brake pad wear indicator warning light
24 Seat Leon Mk2 1P electronic immobiliser
