Volvo C70 Car Warning Lights

Volvo C70 car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Volvo C70 dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Volvo trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your Volvo C70 we would advise you to go for the iCarsoft VOL V1.0 Volvo OBD Code Reader. Its an extremely popular choice amongst Volvo owners worldwide because it covers such a wide range of modules within the vehicle and has received excellent feedback from buyers.

If you need a new sensors to fix your Volvo C70 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

Volvo C70 engine warning light - this light will stay illuminated if there is a malfunction within the engine after start up - we would advise you to use the iCarsoft VOL V1.0 Volvo OBD Code Reader to diagnose the engine problem, the kit will also clear the codes & reset the dashboard light.

Volvo C70 ABS Dash Light - indicates a problem within the ABS or Anti Lock Braking System. You need to hook this upto a diagnostic kit that covers the ABS module such as the iCarsoft VOL V1.0 Volvo OBD Code Reader. It could be that an ABS sensor needs to be replaced - if this is the case you should visit www.bavariandominator.co.uk for your ABS sensors

Volvo C70 airbag warning light - indicates a problem within the airbag system and needs to be checked out ASAP. You should use a diagnostic tool which covers the airbag system such as the iCarsoft VOL V1.0 Volvo OBD Code Reader. The kits will tell you where within the airbag system the fault is occuring, and also allow you to clear the dashboard airbag light.
Volvo C70 dash light

Volvo C70 parking brake warning light - this symbol means that the parking break has been applied.

Volvo C70 brake warning light - if you see this light during normal vehicle operating conditions your brake fluid may be too low. Please check you levels and top up.

Volvo C70 Preheating warning light - this symbol illuminates during engine preheating. Preheating occurs when the temperature is below -2 °C. The car can be started once the symbol goes out.
Volvo C70 dash light

Volvo C70 DSTC system warning light (Stability and traction control system)
Volvo C70 dash warning light

Volvo C70 I or information warning light - the yellow information symbol illuminates and a text appears on the information display. The message text is cleared using the READ button. The yellow information symbol can also illuminate in conjunction with other symbols.
Volvo C70 dash warning light

Volvo C70 triangle warning light - the red warning symbol illuminates when a fault has been indicated which could affect the safety and/or driveability of the car. An explanatory text is shown on the information display at the same time. The symbol remains visible until the fault has been rectified but the text message can be cleared with the READ button
Volvo C70 warning light

Volvo C70 engine oil pressure warning light - illuminates when the oil pressure falls below the normal range. Check you oil levels and top up if neccesary.

Volvo C70 fog lamps - illuminates when the fog lamps are switched on, if the vehicle is fitted with them.
Volvo C70 warning light

Volvo C70 high beam - illuminates when the high beam has been turned on.
Volvo C70 warning light

Volvo C70 turn signal warning lights - illuminate when turning left, right or using hazard lights.
Volvo C70 warning light

Volvo C70 low fuel warning light - fill up your fuel tank you are about to run out.

Volvo C70 battery warning light - if this is lit up during normal operating conditions it indicates that the battery is not being charged. This needs to be checked out by your local workshop.
Volvo C70 dash light

Volvo C70 seatbelt warning light - you or your passenger needs to fasten your seatbelt.

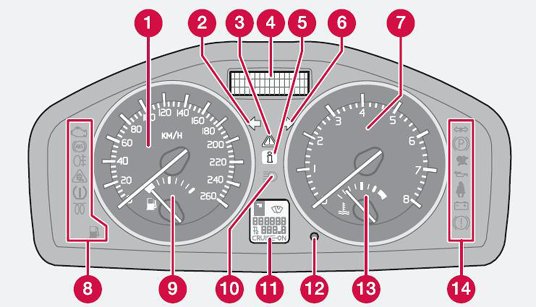

volvo c30 dash
1. Volvo C70 speedometer.


2. Volvo C70 direction indicators, left.

3. Volvo C70 warning symbol.

4. Volvo C70 information display – Shows information or warning messages, outside temperature and clock. When the outside temperature is between +2 °C to -5 °C a snowflake illuminates on the display. This warns of icy roads. The outside temperature gauge may show a slightly high reading after the car has been stationary.

5. Volvo C70 information symbol.

6. Volvo C70 direction indicator, right.

7. Volvo C70 tachometer – Indicates engine speed inthousands of revolutions per minute (rpm).

8. Volvo C70 indicator and warning symbols.

9. Volvo C70 fuel gauge.


10. Volvo C70 main beam indicator.

11. Volvo C70 display for automatic gear position, rain sensor, odometer, trip meter and cruise control.

12. Volvo C70 button for trip meter – Used to measure short distances. Short presses on the button switches between the two trip meters T1 and T2. A long press (more than 2 seconds) resets an active trip meter to zero.

13. Volvo C70 temperature gauge - Used for the engine cooling system. A message will appear on the display if the temperature becomes too high and the gauge goes into the red zone. Bear in mind that extra lights placed in front of the air intake, for example, reduce the cooling capacity at high outside temperatures and high engine loads.

14. Volvo C70 indicator and warning symbols.
