£149iCarsoft MB V1.0 Mercedes, Sprinter & Smart Multi System 16 & 38 Pin Diagnostic Reset Tool Engine ABS Airbags

iCarsoft MB V1.0 Mercedes Smart Sprinter Diagnostic World engine abs airbag suspension park official stockist seller
iCarsoft MB V1.0 Mercedes Smart Sprinter Diagnostic World engine abs airbag suspension park official stockist seller
iCarsoft MB V1.0 Diagnostic SRS Airbag Light Diagnose Reset
icarsoft MB V1.0 Mercedes Smart Sprinter engine abs airbags transmission diagnostic tool 2
£149
29 sold in last 30 days

► IN STOCK - 17 AVAILABLE
► SAME DAY DISPATCH FROM OUR UK BASE
► DELIVERY IN 1-2 DAYS

► OVER 850 SOLD

- Free UK delivery
- Worldwide delivery available

- Beware of fakes - we only stock 100% genuine units.
Customer reviews at bottom of page
gceoXx7gi

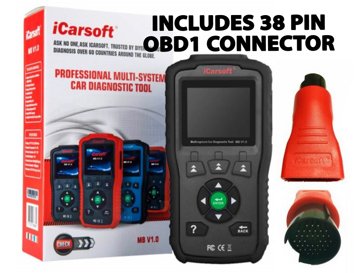

iCarsoft MB V1.0 - Suitable for both 16 & 38 pin connector cars.

MB V1.0 is a professional and powerful vehicle fault diagnosis tool developed by iCarsoft Technology Inc. With a 4” TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, J1850 etc. It will enable technicians to accurately diagnose complex problems.

Even if your car has no faults, the kit will serve as an essential HEALTH CHECK TOOL, so if you're keen to maintain your vehicle and ensure it is in good condition we recommend keeping one in your car/toolbox at all times.

DID YOU KNOW, it can cost between £50 - £80 just for your local garage or dealer to hook up their diagnostic machine. This tool will tell you EXACTLY the same information. Once you have used this tool twice - it has already paid for itself.

Dash Warning ights




Features.

Most modern Mercedes cars have a 16 pin diagnostic port, but older cars have a 38 pin connector. This kit comes with a dedicated iCarsoft 38 pin connector which allows the tool to work on 38 pin cars (and still also works on 16 pin cars)

● MB V1.0 can do it all-reads and clears trouble codes on all the systems such as engine, transmission, ABS and airbag etc.

● Reset Oil Service Messages & Warnings

● Diagnose Parking Sensor Faults

● Read LIVE DATA Stream

● Full ECU Diagnosis

● Applies to the entire models of MERCEDES, SPRINTER & SMART equipped with OBDII-16 DLC

● Easy To Use With Metal Dome Keys

ABS/AIRBAG:Diagnoses ABS/ SRS system codes,Reads/clears codes of ABS/SRS system and turns off ABS/SRS warning light,Performs bi-directional tests such as cycling the ABS solenoids, Retrieves ABS/SRS ECU information etc.

Mercedes coverage

117 CLA
156 GLA
163 ML Class
164 M Class
166 M Class
166 GL Class
168 A Class
169 A Class
176 A Class
170 SLK
171 SLK
172 SLK
190 AMG
197 SLS
199 SLR
203 C Class
203 CLC Class
204 C Class
204 GLK
205 C Class
207 E Class
209 CLK
210 E Class
211 E Class
212 E Class
213 E Class
215 CL Class
216 Cl Class
217 S Class
218 CLS
219 CLS
220 S Class
221 S Class
222 S Class
230 SL
231 SL
240 Maybach
245 B Class
246 B Class
251 R Class
253 GLC
292 GLE
461 G Class
463 G Class
Smart
Sprinter
Vito
Vaneo
Viano




Menu/System Coverage

PARKTRONIC - Parking Sensors
ENGINE - ME-Motor  electronics
ENGINE - CDI Common  Rail  Diesel  Injection
ENGINE - CDI-Motor  electronics
SUSPENSION - Airmatic
ES-Electrical  power  steering
ESP-Electronic  stability  program
EFB-Electronic  parking  break
ABS - DTR-DISTRONIC
AIRBAG - SRS-Supplemental  restraint  system
TPM -Tire  pressure  monitor
PTCU-Common  powertrain  controller
FSCU-Fuel  pump
mbrace-mbrace
SCR-Selective  Catalytic  Reduction
EZS-Electronic  ignition  switch
SAM-Signal  acquisition  and  actuation   module
IRS-HRA-Outer  right  rear  intelligent   radar  sensor
IRS-HLA-Outer  left  rear  intelligent   radar  sensorsystem
SG-AWF-Control  unit  'COLLISION   PREVENTION  ASSIST'
SG-SW-Control  unit  'Headlamp'
RevETR-LF-Left  front  reversible   emergency  tensioningretractor
RevETR-RF-Right  front  reversible   emergency  tensioningretractor
SCM-Steering  column  module
Trailer  recognition  module-Trailer
PSD-Control  module  'Panoramic  sliding   roof
ATA-ATA[EDW]/tow-away
IC-Instrument  cluster
ICM-Instrument  cluster  with   maintenance  intervaldisplay
Central  operating  unit
DAB-Digital  Audio  Broadcasting
DAB-Digital  radio
DKG-Electronic  transmission  control   for  double-plateclutch  transmission
ZAN-Central  display
DSI-DIRECT  SELECT  interface
Audio-Audio  or  COMAND
MFK-Multifunction  camera
NAV-Navigation  module
SDAR-Satellite  radio
Sound  system
Sound  system  (Main  amplifier)
TV-TV  tuner(AGW)
UCI-Media  interface
Audio-Audio  5  USB
DCU-LF-Left  front  door
DCU-RF-Right  front  door
ESA  'Driver'-Electrical seat adjustment 'Driver'  with memory  function
ESA'Front  passenger'-Electric  seat   adjustment'Front passenger' with memory function
AAC-Air  conditioning
STH-Stationary  heater
UCP-Upper  control  panel
BSN-Battery  sensor
AISP-Dimming  inside  rearview  mirror
GTO-Garage  door  opener
AMLAB-L  1-Actuation  module  1,  LED   exterior  lighting,left  front
AMLAB-R  1-Actuation  module  1,  LED   exterior  lighting,right  front
RGLS-Rain/light  sensor
Overhead  control   panel
Alarm System
ISM - Shift Module
Xenon Headlights

FAQ:

Q. Will this kit allow me to find out why my check engine light is illuminated?
A. Yes, the kit will let you read fault codes & will give you a description of the fault. It will also let you erase the fault codes and the check engine warning light.

Q. Will this kit allow me to find out why my SRS airbag warning light is illuminated?
A. Yes, the kit will let you read & clear the airbag fault codes and remove the SRS airbag warning light.

Q. Will this kit allow me to find out why my ABS, brake & traction control warning lights are illuminated?
A. Yes, this kit will let you read fault codes for the braking system. It will give you a unique fault code relating to a specific part of the abs system, for example 'rear left abs sensor' The kit will also allow you to erase the fault codes and dash warning lights.

Q. Will this kit allow me to reset the oil service messages?
A. Yes, this kit will allow you to reset the service warning lights & messages.

_________________________________________________________________

Product Reviews

5stars  Michael Simpson, Enniskillen, UK

I bought the MB V1.0 as advised by Alistair at Diagnostic World who advised me that the i980 was not suitable for the W205 Mercedes C Class. I bought the recommended kit and am very pleased to say that it worked exactly as he said it would. I was able to find and clear the codes for an airbag light which was triggered when i accidentally unclipped the airbag connector. Thank you for your help and will order again soon for my BMW.

5stars  Christopher Fanduiz, New York, USA

We ordered this for our Mercedes E Class W212 and was able to access all of the main systems that I needed within seconds. It scanned for codes in systems like engine, transmission, airbags, abs, parking sensors and a whole lot more (systems that I am not farmiliar with) but my main reason for buying was because I had the ESP ABS message on screen with the ABS warning lights showing on the dashboard. As it turns out I needed a replacement rear left ABS sensor which I fitted myself, and then cleared the warning messages with this MB V1.0 kit. Super.

5stars  Robert Cawley, Exeter, UK

I originally bought the iCarsoft i980 kit to diagnose the ABS/ESP warning lights on my Mercedes C Class W204 facelift model but when trying to diagnose I would get the 'communication failure' message. I was advised to use the MB V1.0 kit instead as the software is better and its newer. I swapped the kit out and the MB V1.0 kit worked straight away, so I am A. happy with this kit, and B. Wanting to inform you that if you have the ESP/ABS warning light on your C Class facelift (2011 to 2014) then go straight for the MB V1.0 kit.

5stars  Mohammed Day, Leicester, UK

My local garage quoted me £70 to read & reset the fault codes on my Mercedes B Class and said that because it was a Mercedes it needed specialist equipment. I asked Diagnostic World about this and they said that was simply not true. The advised me to use this kit because not only would I be able to read & reset the fault codes and warning lights, but I would be able to clear any service messages that sometimes pop up. I ordered it and it came in 3 days. Used it a couple of times and worked exactly as they said straight from the box. Since I have already used it a couple of times it has already paid for itself. Thank you so Much Diagnostic World. Excellent service and products. A+++

5stars  Gregory Carson, Swindon, UK

Good solid kit which covers both our Mercedes A Class & our Sprinter work van. I had a check engine warning on the A Class which turns out it needed a new MAP sensor. I replaced this and was able to reset the codes fairly easily.

5stars  Paul Ottie, Tanfield, UK

I bought this for my Smart car with an airbag fault. The MB V1.0 kit allowed me to reset the fault straight away and never came back on. Not sure what the issue was exactly, the scanner said something to do with the connection under the drivers seat which may have been knocked out of place, really not sure though. The tool worked well though so delighted with the recommendation.

4 stars  John Slater, Ayr, UK

It took 4 days to arrive instead of 1-2 days as promised. It does work fine though to diagnose an ABS ESP issue on my ML Class Mercedes. I was a little sceptical at first, but this has actually saved me a bit of cash that would have otherwise gone to the garage. I fitted the replacement ABS sensor myself which tool about 2 hours (complete novice) but now my abs system is operating like new. I am keeping the MB 1.0 kit in my glovebox incase any future issues arise. Love it. A++++++++++++

5stars  David Proctor, Berwick, UK

Happy with the product, well packaged, well built and very sturdy. The MB V1.0 was able to diagnose some trouble codes  (and engine warning light) which was because of my EGR valve. I managed to simply clean my EGR valve and erased the fault codes - this worked perfectly so all I had to spend was for the scanner, and some EGR cleaner fluid and a Saturday afternoon.

5stars  Jai Hart, Glasgow, UK

Works well, happy with the kit. I have zero experience with any of this, and my C Class W204 was showing an airbag fault which I was able to reset instantly. I love the live data part of the tool aswell, it gives me a lot of information that in all honesty I dont understand but I am slowly learning.
