Porsche Boxster 981 Car Warning Lights

Porsche Boxster 981 car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Porsche Boxster 981 dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Porsche trouble codes and clear the warning light for good.
The following symbols have been taken from a Porsche Boxster 981. The best Porsche diagnostic kit on the market right now is the iCarsoft POR V1.0 Porsche OBD Code Reader. It will read & reset Porsche fault codes & Porsche trouble codes aswell as turn off dashboard lights such as the Porsche check engine light, Porsche airbag light or the Porsche ABS warning light.

If you need to change any sensors in your Porsche, visit www.bavariandominator.co.uk.

Porsche Boxster 981 check engine warning light - if this remains illuminated on the dashboard of your Porsche it means there is a fault within this module. The most likely cause of this will be a faulty sensor such as an O2, camshaft, crankshaft, MAF, or even an ignition coil pack. The easiest way to diagnose the fault is to use the iCarsoft POR V1.0 Porsche OBD Code Reader which will give you specific Porsche fault codes, and allow you to erase the trouble codes & dash warning light.

Porsche Boxster 981 ABS warning light - if the ABS dash symbol is stays illuminated after starting the engine, it means you have a fault in the ABS system. The most likely cause of this warning light would be a faulty ABS sensor (your car will have one on each wheel). The other problems could be a faulty ABS module or ABS pump which are generally more expensive. You can diagnose the ABS fault yourself by using the iCarsoft POR V1.0 Porsche OBD Code Reader which will allow you to read & reset the trouble codes, and then turn off the ABS warning light

Porsche Boxster 981 airbag warning light - this is the airbag dash symbol in your Porsche Boxster and if illuminated when driving the vehicle it means you have a serious fault in this system. You shoud have the fault diagnosed by using the iCarsoft POR V1.0 Porsche OBD Code Reader which will allow you to read & erase the trouble codes, and also turn off the airbag light.

Porsche Boxster 981 tyre pressure warning light - this symbol means that one or more tyres are not inflated to the correct pressures. Check your tyres and add more air where required.

Porsche Boxster 981 service due warning light - this symbol will normally be acompanied by some extra information about the level of service needed. Refer to your service manual and arrange to have the work carried out in order to keep your Porsche in good condition. You can reset this warning light & message yourself by using the iCarsoft POR V1.0 Porsche OBD Code Reader

Porsche Boxster 981 slip traction control warning light (also known as PSM - Porsche Stability Management) - if this is illuminated it means that the system could have a failure. You can diagnose a PSM failure using the iCarsoft POR V1.0 Porsche OBD Code Reader

Porsche Boxster 981 ! exclamation mark warning light - this is also known as the central warning light. It will illuminate if there are warning messages in the INFO menu.

Porsche Boxster 981 convertible roof - this is the warning light for the convertible roof and indicates there is a fault in the system. You are advised to have this kind of fault checked out by a Porsche dealer workshop or specialist.

Porsche Boxster 981 BRAKE warning message - this will appear on your dashboard and will also be accompanied by a message on the message centre screen which indicates the specific fault, the possible faults could be handbrake fault or in the ON position, low brake fluid, or faulty ABS sensor (accompanied by the ABS warning light) You can diagnose this with the iCarsoft POR V1.0 Porsche OBD Code Reader

Porsche Boxster 981 battery warning light - if this illuminates in the message centre in your Boxster, it means that the battery is not being charged and has an electrical fault. You should have this checked out by a Porsche dealer workshop or garage.

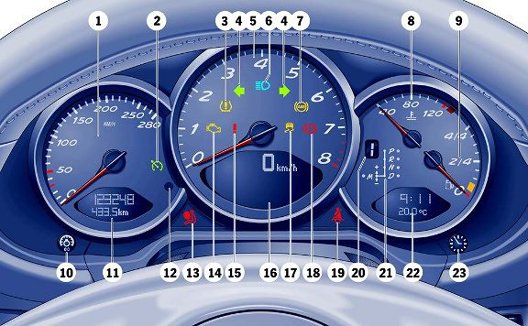

Porsche 981 Boxster Cayman Dashboard Warning Lights & Symbols Diagnostic World
1. Porsche Boxster 981 Speedometer with analogue display
2. Porsche Boxster 981 Automatic speed control indicator light
3. Porsche Boxster 981 Tire pressure warning light
4. Porsche Boxster 981 Turn signal indicator light, left/right
5. Porsche Boxster 981 Tachometer
6. Porsche Boxster 981 High beam indicator light
7. Porsche Boxster 981 ABS warning light
8. Porsche Boxster 981 Cooling system temperature gage warning light
9. Porsche Boxster 981 Fuel Level gage, warning light
10. Porsche Boxster 981 Adjustment button for instrument illumination and trip counter
11. Porsche Boxster 981 Odometer and daily trip mileage display
12. Porsche Boxster 981 Light sensor for instrument illumination
13. Porsche Boxster 981 Airbag warning light
14. Porsche Boxster 981 Check Engine warning light
15. Porsche Boxster 981 Central warning light
16. Porsche Boxster 981 On-board computer display
17. Porsche Boxster 981 Porsche Stability Management PSM Multifunctional light
18. Porsche Boxster 981 Brake warning light
19. Porsche Boxster 981 Safety belt warning light
20. Porsche Boxster 981 Gear display
21. Porsche Boxster 981 PDK transmission, selector lever position
22. Porsche Boxster 981 Clock and outside temperature display
23. Porsche Boxster 981 Adjustment button for clock
