Volvo s40 car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Volvo s40 dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Volvo trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your Volvo S40 we would advise you to go for the iCarsoft VOL V1.0 Volvo OBD Code Reader. Its an extremely popular choice amongst Volvo owners worldwide because it covers such a wide range of modules within the vehicle and has received excellent feedback from buyers.
If you need a new sensors to fix your Volvo S40 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.
If you need a new sensors to fix your Volvo S40 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

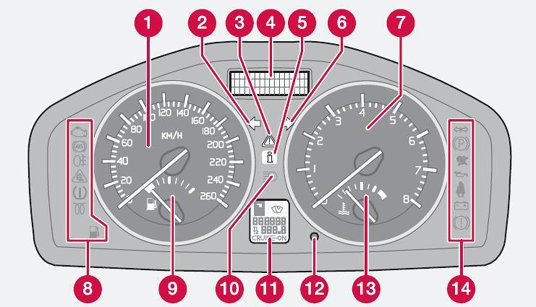

1. Volvo S40 speedometer.
2. Volvo S40 direction indicators, left.
3. Volvo S40 warning symbol.
4. Volvo S40 information display – Shows information or warning messages, outside temperature and clock. When the outside temperature is between +2 °C to -5 °C a snowflake illuminates on the display. This warns of icy roads. The outside temperature gauge may show a slightly high reading after the car has been stationary.
5. Volvo S40 information symbol.
6. Volvo S40 direction indicator, right.
7. Volvo S40 tachometer – Indicates engine speed inthousands of revolutions per minute (rpm).
8. Volvo S40 indicator and warning symbols.
9. Volvo S40 fuel gauge.
10. Volvo S40 main beam indicator.
11. Volvo S40 display for automatic gear position, rain sensor, odometer, trip meter and cruise control.
12. Volvo S40 button for trip meter – Used to measure short distances. Short presses on the button switches between the two trip meters T1 and T2. A long press (more than 2 seconds) resets an active trip meter to zero.
13. Volvo S40 temperature gauge - Used for the engine cooling system. A message will appear on the display if the temperature becomes too high and the gauge goes into the red zone. Bear in mind that extra lights placed in front of the air intake, for example, reduce the cooling capacity at high outside temperatures and high engine loads.
14. Volvo S40 indicator and warning symbols.
2. Volvo S40 direction indicators, left.
3. Volvo S40 warning symbol.
4. Volvo S40 information display – Shows information or warning messages, outside temperature and clock. When the outside temperature is between +2 °C to -5 °C a snowflake illuminates on the display. This warns of icy roads. The outside temperature gauge may show a slightly high reading after the car has been stationary.
5. Volvo S40 information symbol.
6. Volvo S40 direction indicator, right.
7. Volvo S40 tachometer – Indicates engine speed inthousands of revolutions per minute (rpm).
8. Volvo S40 indicator and warning symbols.
9. Volvo S40 fuel gauge.
10. Volvo S40 main beam indicator.
11. Volvo S40 display for automatic gear position, rain sensor, odometer, trip meter and cruise control.
12. Volvo S40 button for trip meter – Used to measure short distances. Short presses on the button switches between the two trip meters T1 and T2. A long press (more than 2 seconds) resets an active trip meter to zero.
13. Volvo S40 temperature gauge - Used for the engine cooling system. A message will appear on the display if the temperature becomes too high and the gauge goes into the red zone. Bear in mind that extra lights placed in front of the air intake, for example, reduce the cooling capacity at high outside temperatures and high engine loads.
14. Volvo S40 indicator and warning symbols.
