Nissan Navara D40 Car Warning Lights

Nissan Navara D40 (also known as the Nissan Frontier) car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Nissan Navara D40 dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Nissan trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your Nissan Navara D40 we would advise you to go for the iCarsoft i903 Nissan OBD Code Reader. Its an extremely popular choice amongst Nissan owners worldwide because it covers such a wide range of modules within the vehicle and has received excellent feedback from buyers.

If you need a new sensors to fix your Nissan such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

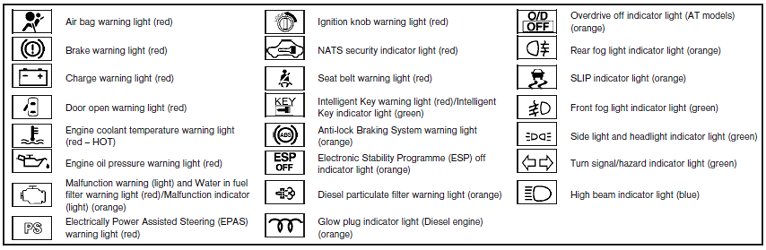

Nissan Navara D40 engine malfunction warning light.  If illuminated it indicates that there is a malfunction within the engine and needs to be checked out. You can diagnose the Nissan Navara engine problems yourself by picking up a code reader which is compatible with the Nissan Navara D40, we would recommend the iCarsoft i903 Nissan OBD Code Reader, the i903 will also diagnose systems such as ABS, SRS airbag & transmission.

Nissan Navara D40 airbag warning light - if this warning light illuminates during normal operating conditions it indicates a problem within the airbag module. It does not mean that an airbag needs to be replaced, it could be a loose connection that has caused the error. You can find the airbag trouble code by using the iCarsoft i903 Nissan OBD Code Reader. Our reset tools are designed to give you the trouble code & reset the airbag warning light on your dashboard.

Nissan Navara D40 ABS warning light - illuminates when there is a problem within the ABS system. More often than not this lights up due to a faulty ABS sensor which can often be full of dirt from the road, it is possible to clean the ABS sensor, but the chances are your cleaning will not last for long and will need to be replaced soon after that. Since you took the time to remove the ABS sensor (which is no easy task for the home mechanic) you may aswell change your ABS sensor. To diagnose a faulty ABS system you can use the iCarsoft i903 Nissan OBD Code Reader. You can find replacement ABS sensors @ Dominator Auto Diagnostics
nissan Navara D40 abs light

Nissan Navara D40 ABS warning light - See above. Depending on where you bought your Nissan your ABS light may differ, but means exactly the same as the ABS light above.
Nissan Navara D40 Oil light

Nissan Navara D40 oil warning light - if illuminates when driving it means that the oil level is at the absolute minimum and needs to be topped up as soon as possible. If the oil symbol illuminates within 20 seconds of starting the engine it indicates that the oil level sensor is faulty and needs to be replaced. you can find replacement Nissan oil level sensors @ Dominator Auto Diagnostics

Nissan Navara D40 brake warning light - Indicates a fault within the braking system. Sometimes it could be something small like the handbrake being engaged, or it could mean that the brake fluid needs to be topped up, or an ABS sensor needs to be replacd, generally coupled with the ABS warning light.
Nissan Navara D40 battery light

Nissan Navara D40 battery warning light - indicates that the battery is not being charged correctly - contact your local workshop as soon as you can.
coolant temp Navara D40 dash light

Nissan Navara D40 engine coolant temperature warning light. If illuminated in red this warning light indicates that the engine coolant temperature is too hot. Do not drive any further and pull over, failure to do this could damage your engine. Check your coolant fluid levels and top up, and check for leaks when topping up.
Nissan Navara D40 Light

Nissan Navara D40 headlamp flasher or high beam dashboard light.
Nissan Navara D40 seatbelt light

Nissan Navara D40 seatbelt warning light - buckle up!
Nissan Navara D40 indicator light

Nissan Navara D40 Indicator flasher lights
Nissan Navara D40 Warning Light

Nissan Navara D40 side light and headlight indicator light (green)
overdrive off nissan Navara D40 dash warning light

Nissan Navara D40 overdrive off indicator light (AT models, orange warning light)

Nissan Navara D40 vehicle dynamic control (or traction control) warning light, also known as slip indicator light.

Nissan Navara D40 ESP OFF warning light - Electronic Stability Programme off. Lights up orange if there is a malfunction within this system.

Nissan Navara D40 screen wash low indicator warning light

Nissan Navara D40 ignition knob warning light (red)

Nissan Navara D40 Glow Plug indicator light (diesel engine only). When ignition is turned on this light will illuminate. It is only safe to start the engine when this light goes off, it illuminates because the engine is cold, when the light is illuminated the pre heating of the engine is active.

Nissan Navara D40 diesel particulate filter warning light (orange) - this light illuminated could indicate a DPF failure and needs to be checked out by your nearest Nissan or nissan independant workshop.

Nissan Navara D40 intellegent key system warning light

Nissan Navara D40 electric power steering warning light.

Nissan Navara D40 door open warning light - please check all doors aree closed correctly.

Nissan Navara D40 NATS security indicator warning light (red)

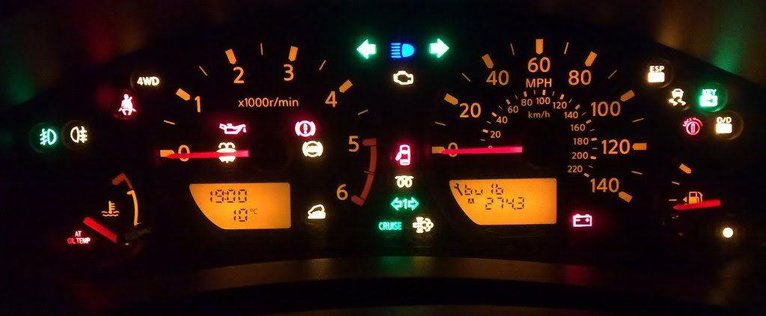

Nissan Navara D40 Dash Warning Lights Speedo CLuster Diagnostic World
