Peugeot 3008 Car Warning Lights

Peugeot 3008 car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Peugeot 3008 dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Peugeot trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your Peugeot 3008 we would advise you to go for the iCarsoft CP V1.0 Peugeot OBD Code Reader. Its an extremely popular choice amongst Peugeot owners worldwide because it covers such a wide range of modules within the vehicle and has received excellent feedback from buyers.

If you need a new sensors to fix your Peugeot 3008 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

Peugeot 3008 check engine warning light. If this engine symbol is illuminated on the dashboard of your Peugeot you should limit your driving and have the problem diagnosed as soon as possible. The most likely cause is a faulty sensor such as a MAF, camshaft, crankshaft, O2 sensor or ignition coil. You can diagnose the fault by using the iCarsoft CP V1.0 Peugeot OBD Code Reader kit which will give you a unique manufacturer fault code and brief description of the fault. Once the fault is fixed you can erase the fault code and warning light with the kit.

Peugeot 3008 SRS airbag warning light. The airbag warning symbol in the Peugeot 3008 indicates there is a fault within this system and needs to be diagnosed as soon as possible. Generally it will be because of a loose connection in the airbag system or a sensor within the system has failed and needs to be replaced. You can find the exact location of the fault with the iCarsoft CP V1.0 Peugeot OBD Code Reader kit which will give you a unique fault code, and a short description of the fault location. Once the problem is fixed you can use the kit to erase the fault codes, and turn off the airbag warning light on the dashboard.

Peugeot 3008 ABS dash warning light. The ABS symbol may also appear at the same time ast the brake (!) warning symbol. This means there is a fault in the ABS system & the most likely cause for a Peugeot ABS warning light is a faulty ABS sensor. Each wheel will have an ABS sensor. The worst case scenario will be a faulty ABS pump or ABS module (these are generally more expensive to replace unless you can find a second hand unit) To diagnose the ABS system and pin point the exact fault you can use the iCarsoft CP V1.0 Peugeot OBD Code Reader. It will give you a unique fault code, and also a short description. Once the fault is fixed you can use the kit to erase the fault codes and turn off the warning light on the dashboard.

Peugeot 3008 water in diesel warning light - this symbol indicates that water has managed to find its way into the diesel system and is a big risk to the efficiency of the motor. You should have this looked at straight away by a Peugeot specialist or main dealer.

Peugeot 3008 UREA warning light - this UREA symbol illuminated on your dashboard indicates that you need to top up your AdBlue additive tank otherwise you will breakdown. From the point that this light first comes on - it indicates that you have between 350 to 1500 miles before you will breakdown unless the system is topped up.

Peugeot 3008 tyre pressure monitoring system - if this symbol is illuminated on your dashboard you should check your tyres and top of with air accordingly. Driving with over or under inflated tyres can lead to poor mpg consumption and compromise safety.

Peugeot 3008 STOP warning light, this symbol will illuminate when there is  serious fault associated with the braking, power steering, engine lubrication or cooling systems. Have the vehicle checked over and repaired before you continue to use. Further use could damage the vehicle.

Peugeot 3008 triangle ! warning message, this symbol will illuminate when a fault occurs but there is no obvious warning lamp is applicable.

Peugeot 3008 passenger airbag, the passenger airbag symbol will illuminate when the airbag is switched OFF. YOu can install a child or baby seat to the front passenger seat, btu this function must be de-activated when doing this.

Peugeot 3008 >P< warning light for the parking system - this symbol means that the parking sensors are active and are measuring the distance between the sensors and the object in front or behind.

Peugeot 3008 low oil pressure warning light - this symbol indicates that the oil level in your engine might be low. Please check your oil level and top up accordingly.

Peugeot 3008 engine cooling warning light - this symbol indicates that the coolant in your engine system is too hot. This is a serious fault and you should have it inspected before further driving.

Peugeot 3008 glow plug or pre heating warning light - this symbol will only appear on diesel vehicles. When turning on the ignition you will see this light up, you should wait for it to turn off before starting the engine. If the light is illuminated when driving it indicates a fault with this system. Generally it means the glow plugs need to be replaced. you can replace them all or you can replace the faulty plug. To find out the exact fault location you can use the iCarsoft CP V1.0 Peugeot OBD Code Reader which will allow you to reset the light aswell.

Peugeot 3008 foot on pedal warning light - of you see this symbol in your Peugeot 3008 it indicates that you need to press the brake pedal. This is required to start the engine in some models.

Peugeot 3008 electronic parking brake warning light - this symbol will normally be illuminated when the parking brake is in the ON position.

Peugeot 3008 ECO warning light - the ECO symbol illuminated on the dashboard of your Peugeot 3008 means that the vehicle is stopped when in ECO mode, and when the car starts moving again it will turn off. If the warning light is flashing it means the system has a fault or is unavailable. Disconnecting the battery for 15 minutes can reset this system.

Peugeot 3008 DSC/ASR warning light, this symbol will normally illuminate when driving over road conditions such as snow or ice. If the warning symbol is lit when under normal driving conditions you should have it reset using the iCarsoft CP V1.0 Peugeot OBD Code Reader

Peugeot 3008 battery warning light - the battery symbol illuminated on your Peugeot 3008 does not always mean that a new battery is needed. In fact it actually means that there is a fault somewhere within the charging system, so it could be a battery, or it could be another part such as alternator. You are advised to get this type of fault diagnosed at the garage sooner rather than later.

Peugeot 3008 Auto P OFF electronic parking brake warning light - this symbol indicates a fault with the electronic parking brake. You can diagnose this fault with the iCarsoft FR V2.0 Peugeot OBD Code Reader which will read fault codes & reset the system.

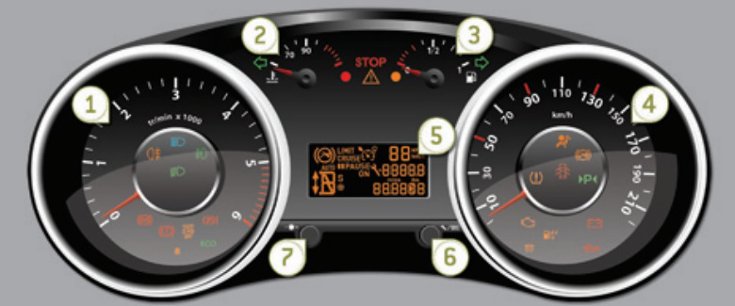

Peugeot 308 Mk2 dashboard
1. Peugeot 3008 rev counter
2. Peugeot 3008 coolant temperature
3.
Peugeot 3008 fuel gauge
4.
Peugeot 3008 speedometer
5.
Peugeot 3008 screen
6.
Peugeot 3008 control switch
7.
Peugeot 3008 instrument panel lighting dimmer
