Volvo V70 & XC 70 car warning lights, car warning symbols such as engine management light, ABS light, airbag light this guide will help you. We have created this Volvo V70 & XC70 dashboard lights meaning guide and will show you how to deal with an engine light, airbag warning light, ABS light and all of the other car warning signs on your dashboard. You might need to buy a scanner online which will show Volvo trouble codes and clear the warning light for good.
If you need to reset a dashboard light or diagnose a fault on your Volvo V70 & XC70 we would advise you to go for the iCarsoft VOL V1.0 Volvo OBD Code Reader. Its an extremely popular choice amongst Volvo owners worldwide because it covers such a wide range of vehicles & modules, and has received excellent feedback from buyers.
If you need a new sensors to fix your Volvo V70 & XC70 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.
If you need a new sensors to fix your Volvo V70 & XC70 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

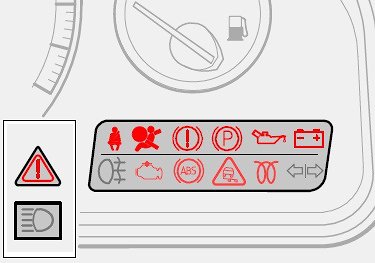

Volvo V70 & XC70 engine warning light - the engine warning light on your Volvo V70 & XC70 will illuminate if the engine ECU detects a fault and needs attention. Generally it will be a faulty sensor such as camshaft sensor, crankshaft sensor, Mass Airflow Meter (MAF) or ignition coil. The first step to removing the warning light is to diagnose the engine module, and we would recommend a simple engine scanner for this job such as the iCarsoft VOL V1.0 Volvo OBD Code Reader. It will give you a fault or trouble code, along with a brief description of where the fault is occuring. Once the fault has been corrected or part replaced you can erase the trouble code (s) and remove the engine warning light.
Volvo V70 & XC70 airbag warning light- if the airbag light illuminates on the dash of your V70 & XC70 it indicates a serious fault within this system and should be diagnosed straight away. To do this we would recommend using the iCarsoft VOL V1.0 Volvo OBD Code Reader. The kits will diagnose the fault and give you a fault code along with description of the fault. Once the problem has been corrected you can erase the trouble code and reset the airbag warning light on the dash.
Volvo V70 & XC70 ABS warning light - if the ABS warning dash lamp illuminates on the dash of your V70 & XC70, it indicates a fault within this module. Generally the fault will be a faulty ABS sensor, but in some cases the ABS pump or module can fail (less common). To diagnose the Volvo V70 & XC70 ABS system fault the best tool to use is the iCarsoft VOL V1.0 Volvo OBD Code Reader. It will give you the trouble codes and tell you where the fault is, which will allow you to replace the part, clear the codes and remove the dash warning light.
Volvo V70 & XC70 seatbelt warning light - simply reminding you to wear your seatbelt, generally acompanied by an annoying ticking when the engine is running but no seatbelt is fastened.
Volvo V70 & XC70 P Parking brake warning light - this P warning lamp will illuminate when the car hand brake is on the on position.
Volvo V70 & XC70 oil warning light - this is the oil warning light on the Volvo V70 & XC70, it means that there is low oil pressure in the engine, and you should check your oil levels immediately. Top up if required, however if your oil levels are fine and the warning light still remains on the dash, you should have it checked out by your local Volvo workshop or independent Volvo workshop.
Volvo V70 & XC70 glow plugs or pre heating warning light - this engine pre heater dash light will only illuminate on diesel engines and when turning on the ignition, you should wait for this light to turn on before starting the engine.
Volvo V70 & XC70 DSTC or traction warning light - this light will generally appear on your dash if the road surface is poor or you cannot get full traction in conditions such as snow or ice. It will flash which means the system is working to acheive best traction possible. If the light is permanently on, you should contact your local Volvo workshop as there is a fault in the system. If you wanted to diagnose this fault yourself, you can do it by using the iCarsoft VOL V1.0 Volvo OBD Code Reader.
Volvo V70 & XC70 brake warning light - if this brake symbol lamp illuminates, it could be because your brake fluid level is too low. Check your levels and top up if required. This light will also illuminate with the ABS warning light if the fault is related to the ABS system.
Volvo V70 & XC70 battery warning light - the battery warning light on your V70 & XC70 when illuminated meanst that the there is probably a fault in the electrical system and the battery is not charging. For this issue you should generally contact an electrical automotive expert.

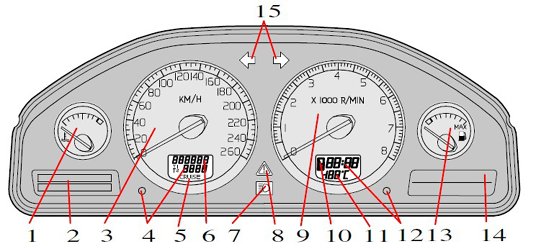

1. Volvo V70 & XC70 temperature gauge
2. Volvo V70 & XC70 dispaly
3. Volvo V70 & XC70 speedometer
4. Volvo V70 & XC70 trip odometer
5. Volvo V70 & XC70 cruise control indicator
6. Volvo V70 & XC70 odometer
7. Volvo V70 & XC70 main beam on/off
8. Volvo V70 & XC70 warning signal
9. Volvo V70 & XC70 tachometer
10. Volvo V70 & XC70 automatic transmission indicator
11. Volvo V70 & XC70 outside temperature sensor
12. Volvo V70 & XC70 clock
13. Volvo V70 & XC70 fuel gauge
14. Volvo V70 & XC70 indicator & warning signals
15. Volvo V70 & XC70 direction indicators left/right
2. Volvo V70 & XC70 dispaly
3. Volvo V70 & XC70 speedometer
4. Volvo V70 & XC70 trip odometer
5. Volvo V70 & XC70 cruise control indicator
6. Volvo V70 & XC70 odometer
7. Volvo V70 & XC70 main beam on/off
8. Volvo V70 & XC70 warning signal
9. Volvo V70 & XC70 tachometer
10. Volvo V70 & XC70 automatic transmission indicator
11. Volvo V70 & XC70 outside temperature sensor
12. Volvo V70 & XC70 clock
13. Volvo V70 & XC70 fuel gauge
14. Volvo V70 & XC70 indicator & warning signals
15. Volvo V70 & XC70 direction indicators left/right
